Larry Worley’s Drag Saw

March 16, 2014 · by David Gilbert · Erector Sets, Machines, Worley, Larry

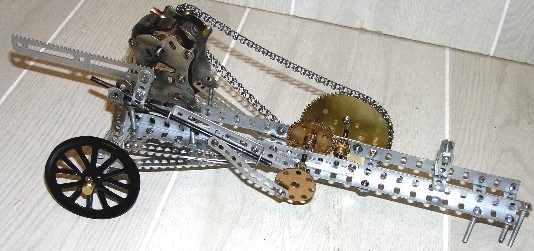

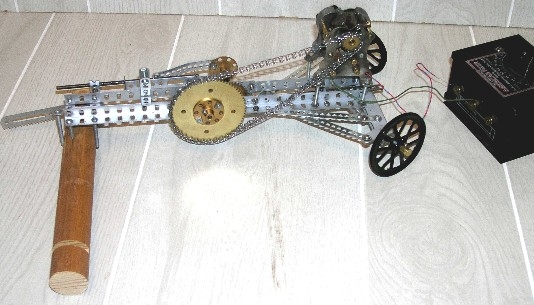

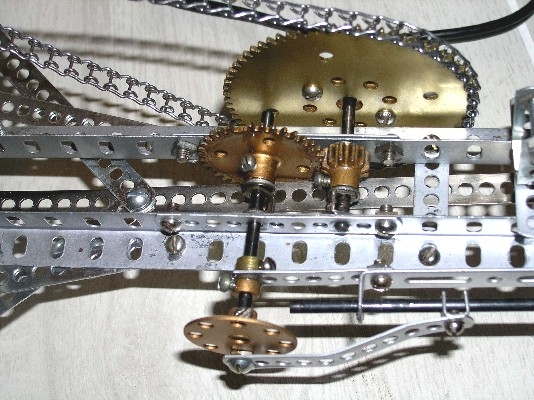

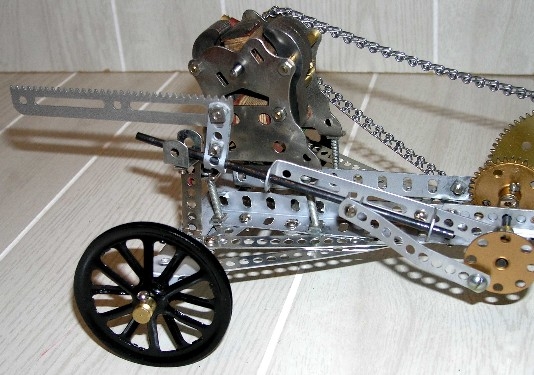

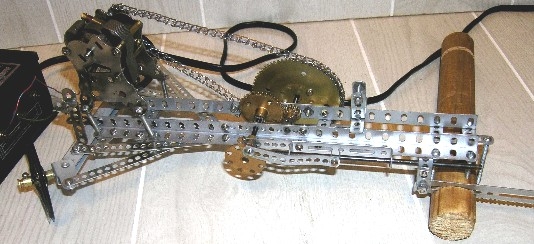

Larry writes: Attached are a few pictures of my latest little gadget. This is the Drag Saw model which I built from a 1929 7.5 White Truck Set. It took about 2 hours to build and runs great. I have powered it here with an A.F. No. 2 transformer because my dry cells have gone dead. I used a scrap piece of closet rod which was already cut for my log. It is a bit large, but a quick modification at the front holder screws took care of that. I also substituted spoke wheels and removed the tie rod from an old MI steering unit. A building tip: Placing a BH solid collar on each side of the G strip behind the BT disc helps eliminate a lot of binding and blade drifting while running. Oh, one more thing, don’t install the P13 & CJ gears on the wrong axle as I first did. That blade was really moving!
